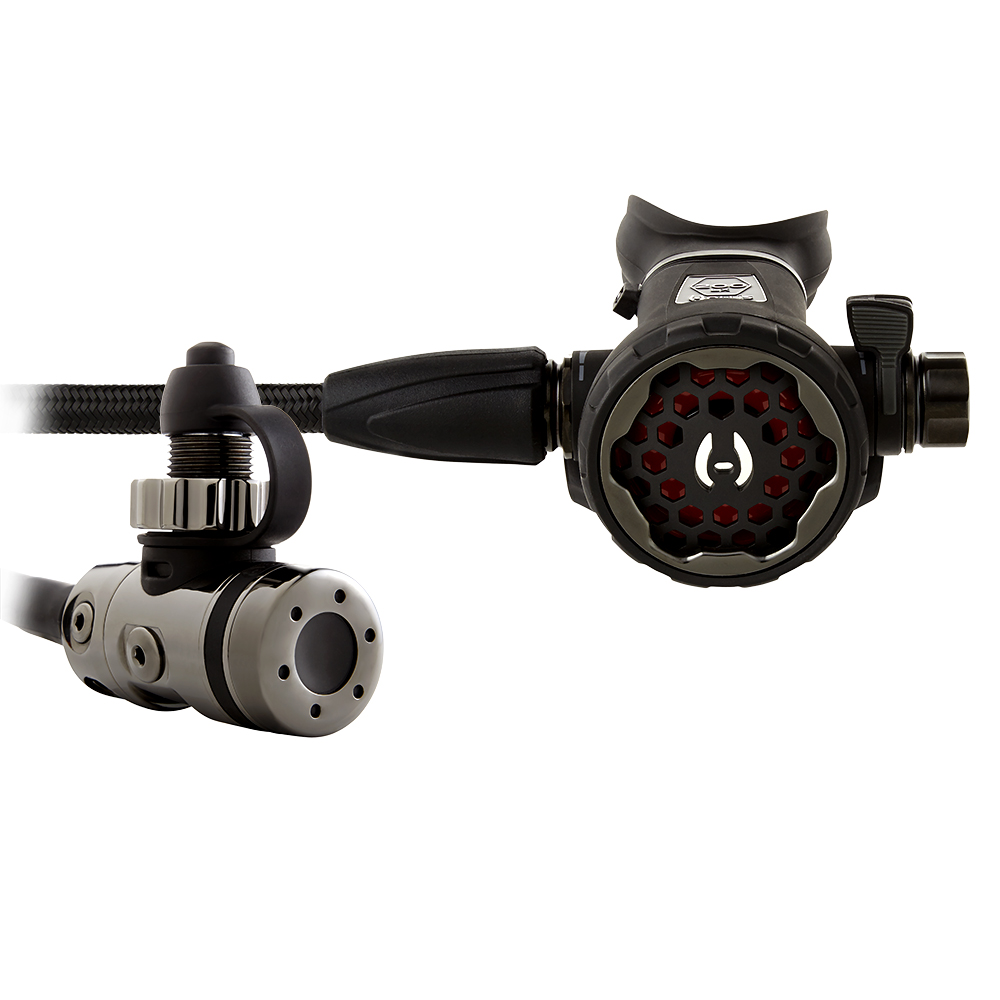

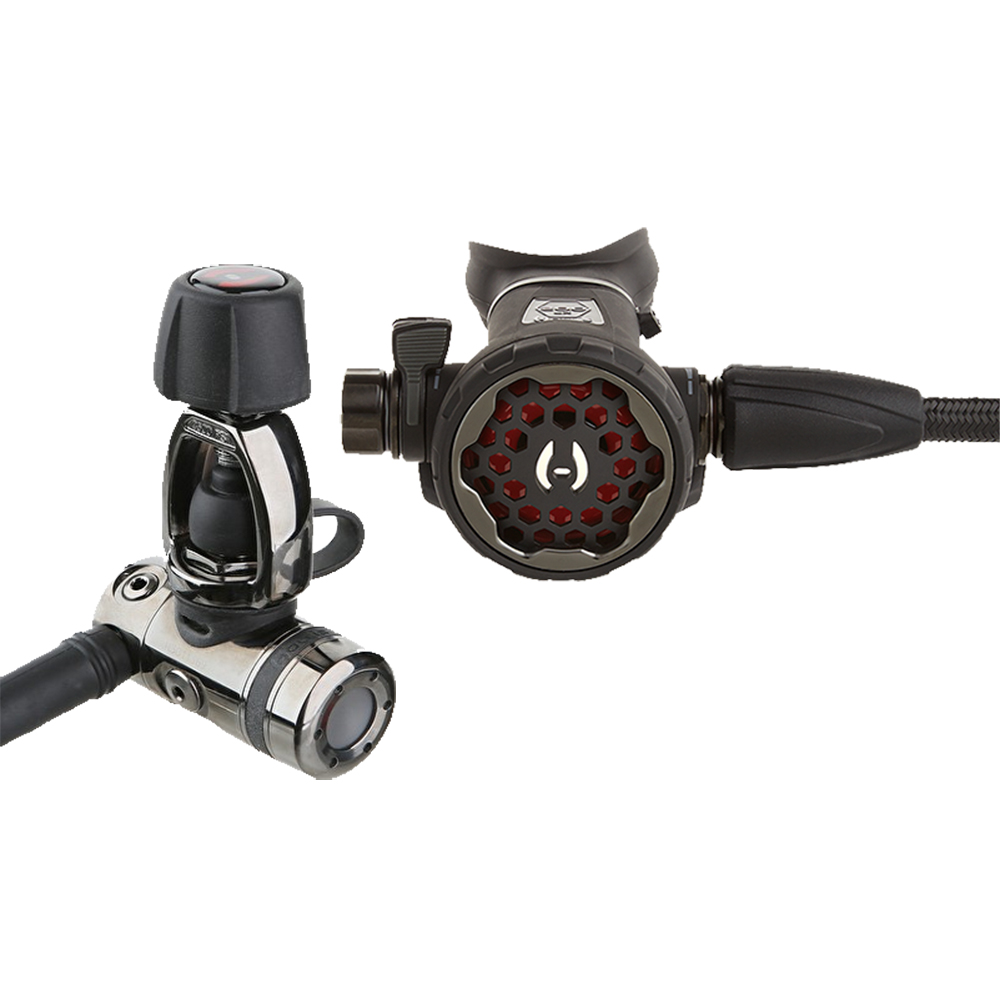

Hollis 200LX DCX Regulator

US$624.95

The 200LX + DCX Regulator; designed for extreme environments. Every feature and detail of this new product provides you with the confidence of 40 years of manufacturing life support systems. The 200LX can be converted from a right-handed to left-handed hose configuration, in a manner of minutes without the use of specialty tools or calibration. The valve and every other metal component of the 200LX is “PVD” Industrial Plated, added to outperform and outlast any other regulator finish.

Clear
Category: Tag:

Description



LX SERIES REGS: Hollis 200LX DCX





The Hollis 200LX DCX Regulator is designed for extreme environments. Every feature and detail of this product provides you with the confidence of 40 years of manufacturing life support systems. The 200LX can be converted from a right-handed to left-handed hose configuration, in a manner of minutes without the use of specialty tools or calibration. The valve and every other metal component of the 200LX is “PVD” Industrial Plated, added to outperform and outlast any other regulator finish.



The swivel turret 1st stage and adjustable breathing on the 2nd stage make this combination one of the best breathes you’ll find.



Pneumatically balanced PVD plated brass valve results in smooth, easy breathing
Reversible demand valve, can be converted from right-handed hose configuration to left-handed hose configuration
Diver adjustable inhalation knob, allows diver to customize inhalation effort
Adjustable Dive/Pre-Dive switch: Large Venturi lever has a soft rubber grip, which makes it easy to locate and use
Ergonomic exhaust channels bubbles away from field of view and reduces exhaust effort
Improved orthodontic mouthpiece with dual color tabs
PVD plated stainless steel metal ring, adjustable knob and Dive/Pre-Dive end cap
MiFlex® braided hose
Din or Yoke options available
Paired with the DCX 1st stage

Specs

FEATURE & FUNCTIONS

200LX SECOND STAGE

Materials

Housing: ABS/Polycarbonate;

Valve Body: PVD Coated Brass;

Adjustment Knob, Pre-Dive/Dive End Cap and Cover Ring: PVD Coated Stainless Steel

Valve Type

Demand

Pneumatically Balanced System

Yes

Adjustment(s)

Venturi Dive/Pre-Dive Switch & Inhalation Effort Control

Ambidextrous Design

YES; Left or Right

Nitrox Compatibility

STANDARD TO 40%

Mouthpiece

ORTHODONTIC

Factory Set Inhalation Effort

1.0 – 1.2 CIW*

Minimum Cracking Effort

0.8 CIW*

Work of Breathing – 198 ft (60 m)

.76 JOULES





FEATURE & FUNCTIONS

DCX FIRST STAGE

Materials

Forged Marine-Grade PVD Plated Brass

Valve Type

Over-Balanced Diaphragm

Low Pressure Ports

5

High Pressure Ports

2

Swivel Turret

For Optimum Hose Routing

Nitrox Compatibility

Standard To 40%

Cold Water Ready

Meets CE Standards

Environmentally Sealed

Stops Corrosion, ice buildup & contamination

300-Bar Din Fitting

Optional

Factory Set Intermediate Pressure

138 – 142 psi

9.5 – 9.8 bar

Pressure Drop

20 psi

1.38 bar
