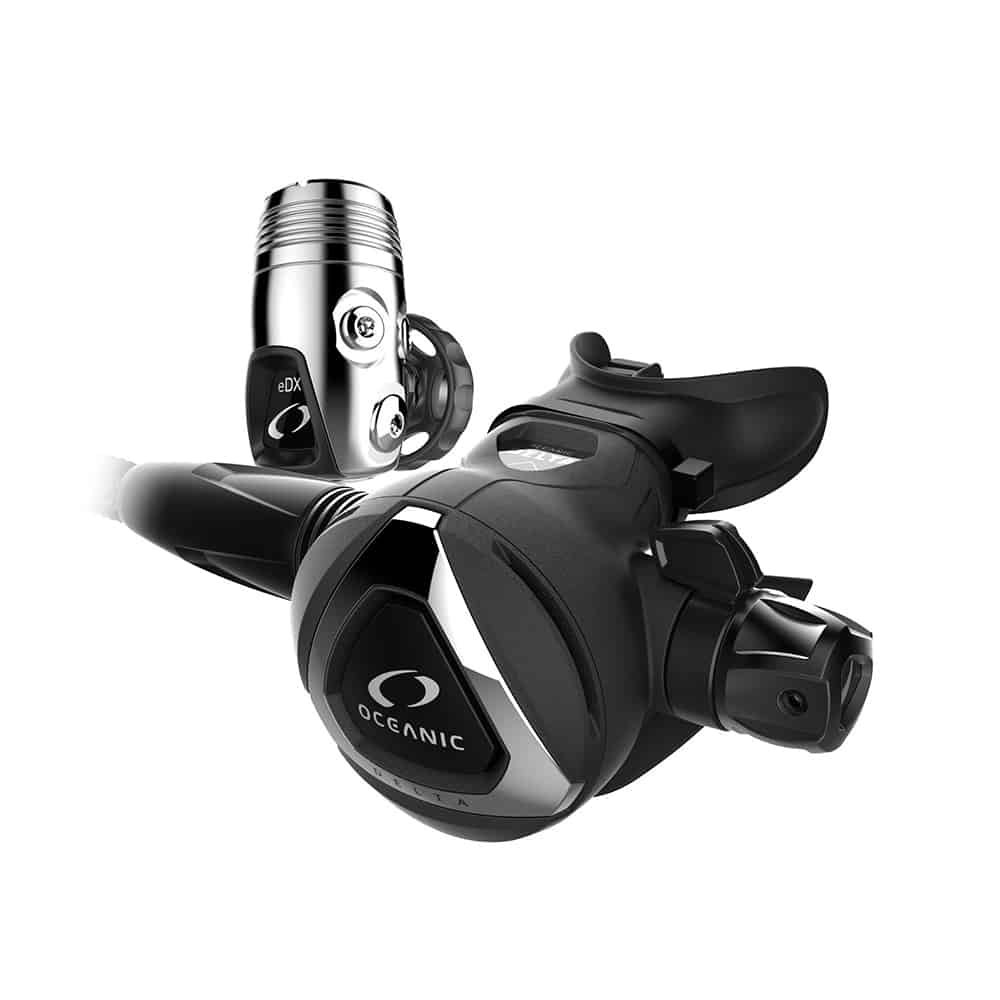

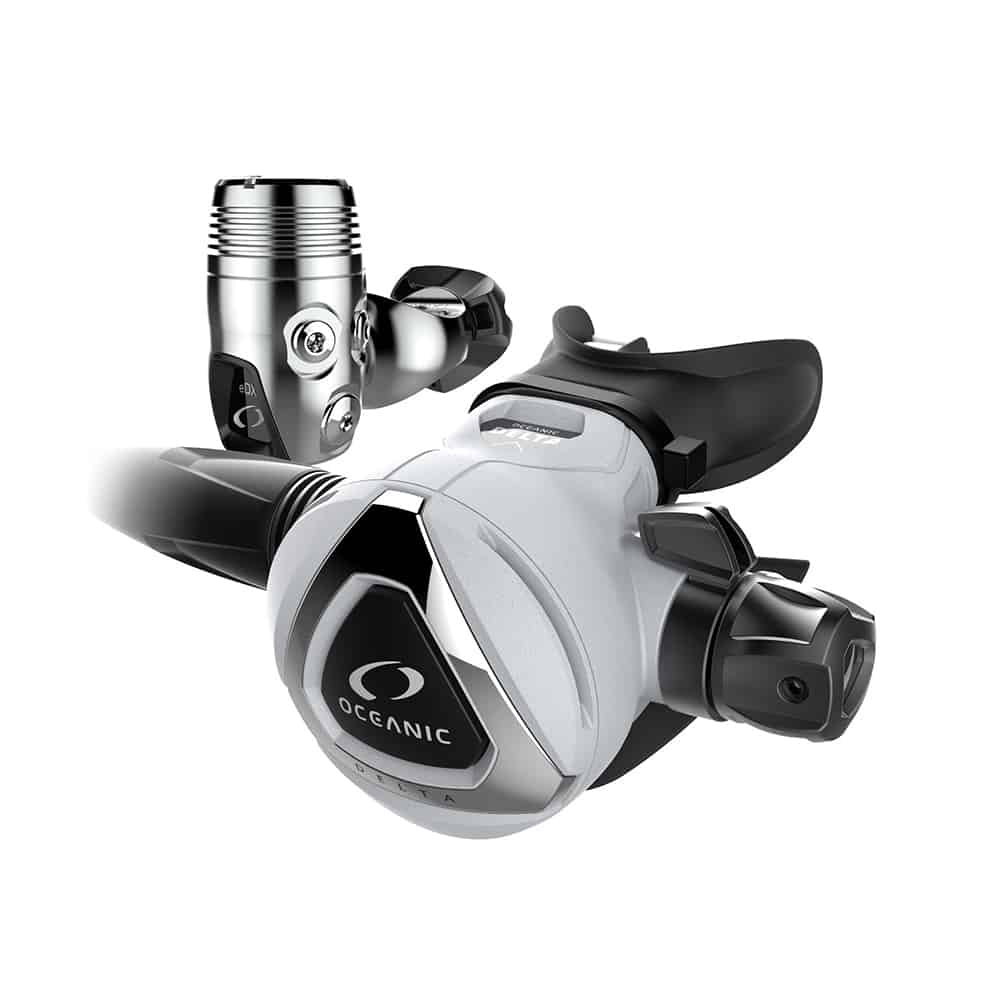

Oceanic Delta 5 eDX Regulator

$835.00

The Delta 5 is the next step in a long line of remarkably reliable, durable and smoothly breathing regulators to carry that name. Like the deltas before it the 5 comes standard with the patented Dynamic Adjustment Technology that, once set by the diver, provides consistent airflow at any depth. It also comes standard with a dive/pre-dive switch and a super comfortable orthodontic mouth piece. This latest edition has a new, and updated, all metal pneumatic valve providing super smooth breathing performance in any condition.

* Sorry, shipping is not available for your country.

SKU: N/A Category: Tag:

Description

Oceanic Delta 5 eDX Regulator




Ready for Anything



The Oceanic Delta 5 is the next step in a long line of remarkably reliable, durable, and smooth breathing regulators.

Like the Delta’s before it, the Delta 5 comes standard with the patented Dynamic Adjustment Technology that, once set by the diver, provides consistent airflow at any depth. It also comes standard with a dive/pre-dive switch and a super comfortable orthodontic mouthpiece.

This latest edition has a new and updated, all-metal pneumatic valve providing super smooth breathing performance in any condition. A heat exchanger, positioned on the hose connection to the 2nd stage further increases its already stellar cold water performance.



Paired with the new eDX. This top-of-the-line cold forged, over-balanced diaphragm first stage is environmentally sealed and comes with 4 low-pressure and 2 high-pressure ports.


  Pneumatically balanced all-metal valve.
  Dive/pre-dive switch & patented dynamic airflow adjustment control.
  Mechanical Purge button for consistent air-flow pressure on during purge.
  Nitrox Compatibility – Standard to 40%.
  Balanced diaphragm first stage eDX is environmentally sealed and cold-water ready.
  Heat Exchanger for Improved cold-water performance.
  Ergonomic exhalation venting.
  Dimensions (Front Profile) – 2.5 inch diameter (circular).
  Dual-material orthodontic mouthpiece with bite tabs.
  Miflex Braided Hose – Standard.
  Optional Universal Swivel Adapter – the optional Universal Swivel comes separately but can be easily installed with an adjustable torque wrench and 5 min of free time. Instructions are provided.
  Available in DIN or Yoke
  Service Interval – 2 Year, Required.

Additional information

Weight 3 kg
Dimensions 35 × 18 × 9 cm

Specs

FEATURE & FUNCTIONS

DELTA 5 SECOND STAGE

Valve Type

Pneumatically balanced all-metal valve

Adjustment(s)

Dive/pre-dive switch & Patented Dynamic airflow Adjustment control

Heat Exchanger

For enhanced cold-water performance

Mouthpiece

Orthodontic w / Tabs

Nitrox Compatibility

Standard To 40%

Swivel Adapter

Optional

Dimensions Front Profile

2.5 inch diameter circular

Factory Set Inhalation Effort

0.0 – 2.5 CIW*

Minimum Cracking Effort

Diver Adjustable

Work of Breathing – 198 ft (60 m)

0.98 JOULES





FEATURE & FUNCTIONS

eDX FIRST STAGE

Valve Type

Over-Balanced Diaphragm

Material

Machined Triple Chrome Plated Marine Brass, Stainless Valve Orifice

Low Pressure Ports

4

High Pressure Ports

2

Nitrox Compatibility

Standard To 40%

Environmental Protection

Dry Chamber

Factory Set Intermediate Pressure

138 – 142 psi

9.5 – 9.8 bar

Pressure Drop

9 psi

300-Bar Din Fitting

Optional
