Hollis 150LX DC7 Regulator

US$499.95

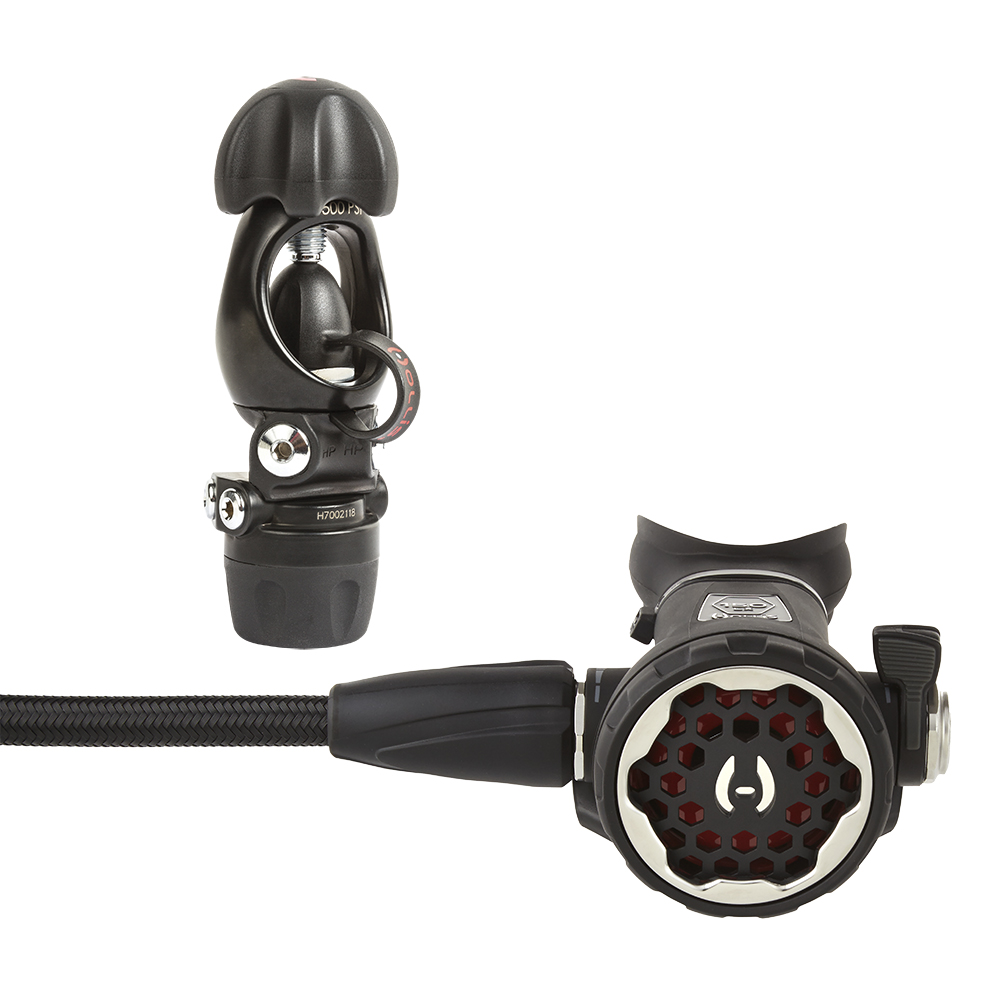

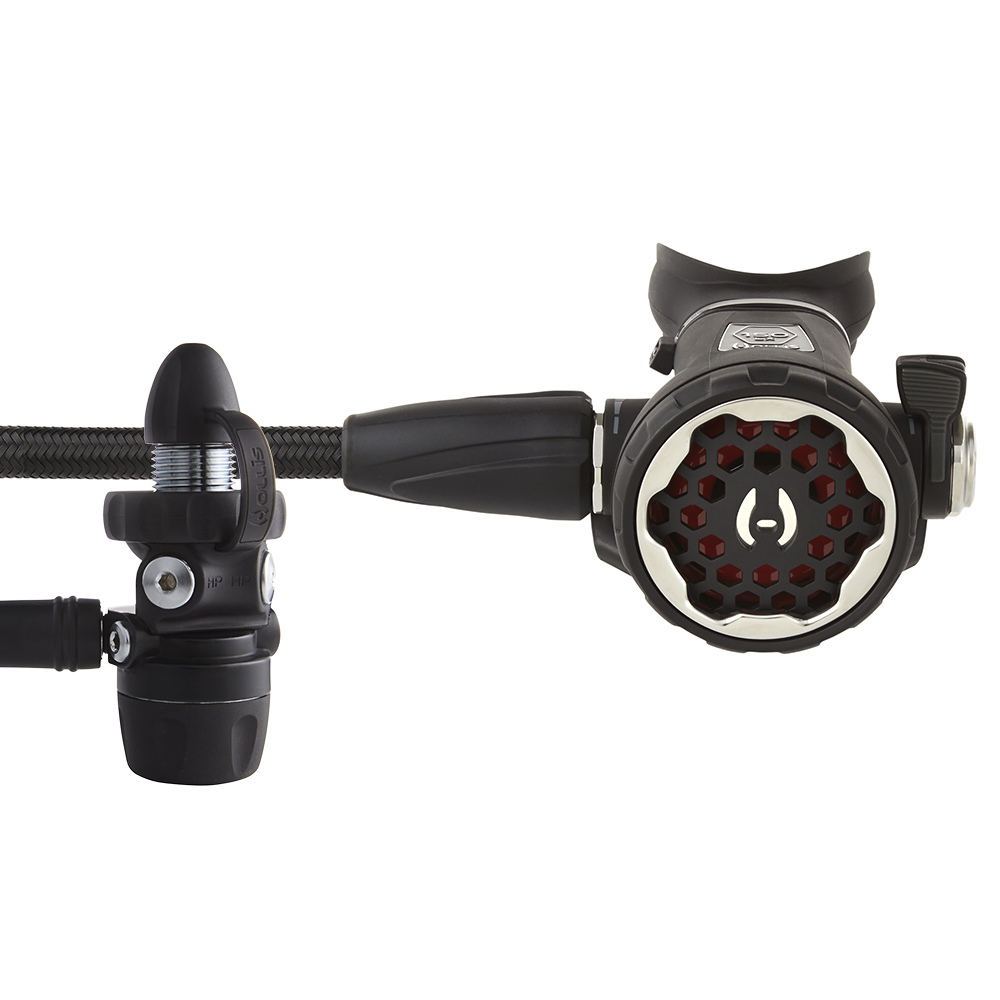

The Hollis 150LX pneumatically balanced second stage delivers high performance at a moderate price. Teamed with the ultra-compact over-balanced diaphragm DC7 first stage, it makes a great travel regulator. All LX regulators come standard with MiFlex® hoses and orthodontic mouthpieces with dual color tabs. Available in YOKE or DIN configuration.

Clear
Category: Tag:

Description

HOLLIS 150LX DC7 REGULATOR


The Hollis 150XL Second Stage Regulator is a pneumatically balanced chrome-plated brass valve results in smooth, easy breathing. Is equipped with a reversible demand valve that can be converted from right-handed hose configuration to left handed hose configuration. The second stage has an adjustable Dive/Pre-Dive switch: Large Venturi lever has a soft rubber grip, which makes it easy to locate and use. Ergonomic exhaust channels bubbles away from field of view and reduces exhaust effort. Improved orthodontic mouthpiece with dual color tabs and a stainless steel cosmetic ring.

The in-line design and machined body makes the DC7 one of the most compact 1st stages around with minimal excess. Environmental sealing improves cold water performance and reduces the amount of cleaning required after a dive.

Built for oxygen percentage 40% to 100%.


Pneumatically balanced chrome-plated brass valve results in smooth, easy breathing
Reversible demand valve, can be converted from right-handed hose configuration to left handed hose configuration
Adjustable Dive/Pre-Dive switch: Large Venturi lever has a soft rubber grip, which makes it easy to locate and use
Ergonomic exhaust channels bubbles away from field of view and reduces exhaust effort
Improved orthodontic mouthpiece with dual color tabs
Stainless steel cosmetic ring
MiFlex® braided hose
Suitable for coldwater diving
Din or Yoke options available

Specs

FEATURE & FUNCTIONS 150LX SECOND STAGE
Valve Type Pneumatically Balanced Demand System
Material Chrome-plated brass
Adjustment(s) Dive/Pre-Dive Switch
Intergrated Purge Button Yes
Mouthpiece Orthodontic w / Tabs
Nitrox Compatibility Standard To 40%
Minimum Cracking Effort 1.0 CIW
Factory Set Inhalation Effort 1.0 – 1.2 CIW
Work of Breathing – 198 ft (60 m) 0.9 JOULES
Ambidextrous Design YES; Left or Right

FEATURE & FUNCTIONS DC7 FIRST STAGE
Valve Type Over-Balanced Diaphragm
Material Machined Triple Chrome Plated Marine Brass, Stainless Valve Orifice
Low Pressure Ports 4
High Pressure Ports 2
Nitrox Compatibility Standard To 40%
Environmental Protection Dry Chamber
Factory Set Intermediate Pressure 138 – 142 psi

9.5 – 9.8 bar

Pressure Drop 9 psi

0.6 bar

300-Bar Din Fitting Optional
